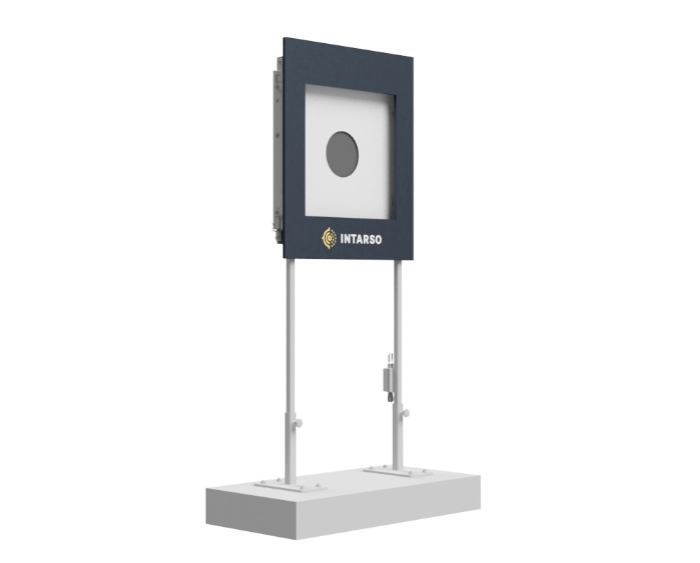

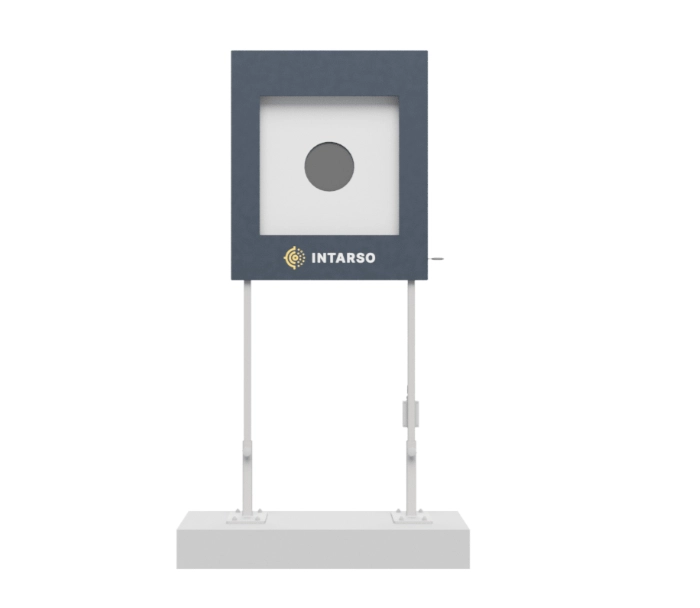

The SQ55 electronic target scoring system is designed for 25m, 50m and 100m distances and consists of two main components - a target with the detection area of 55 x 55 cm and the analytic scoring software. This electronic target is suitable for athlete shooters and shooting clubs and ranges. The system provides immediate performance feedback and detects the position of shots with exceptional accuracy. Due to the automatic recording of hits, it is not necessary to enter the target area during shooting to record the hit. The calculated position of a shot is immediately transferred to the control computer and all shots are displayed in the software.



HARDWARE SPECIFICATION

• Size / dimensions: height 1,85m, width 0,78m, depth 0,9m (measured from pole shoe to open sensor frame)

• Target frame with detection area: 55 x 55 cm

• Exceptional hit accuracy: > 1/10 mm

• Shooting distances: 25, 50 or 100 meters

• Mounting option: stand mount

• Supported weapons: small-bore pistol, small-bore rifle



  SOFTWARE SPECIFICATION

• Different software packages to meet the individual shooter or club requirements

• Web-based, compatible with any modern web browser

• WE ALSO PROVIDE ADDITIONAL SOFTWARE FEATURES BASED ON YOUR NEEDS.

• Supports different devices and screen sizes

• Compatible with Windows, Linux, macOS

• Supports targets and disciplines from ISSF, DSB, BDS

• Individual user profiles and access to personal training history

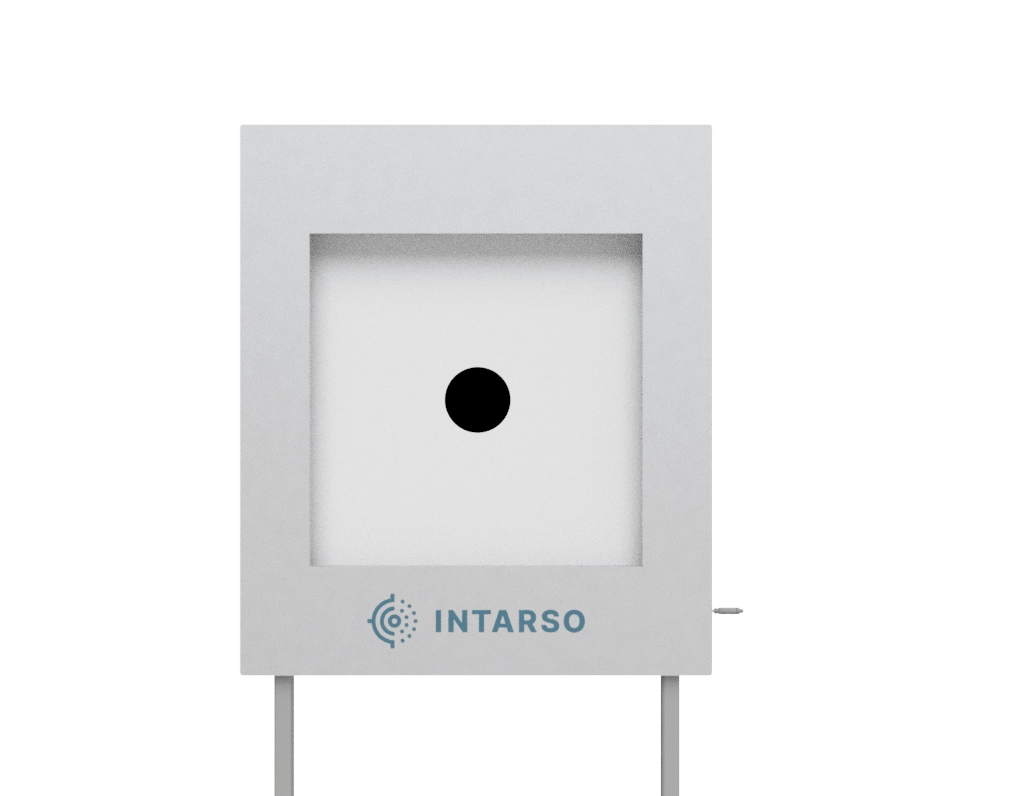

  Measuring frame

  The measuring frame forms a self-contained chamber for ambient noise detection. Sound sensors detect all projectile impacts caused by noise. These coordinates are then transferred to the end-user device (laptop, tablet or smartphone) and displayed with pinpoint accuracy on a virtual target using the INTARSO software.
